COMBINED THREADERS

Descrizione breve Technologies
Descrizione dettagliata
Micro Threaders Single starter unit threader Double Starter Unit Threader Maxi Threader COMBINED THREADERS Warm Threader Pointing Machines
COMBINED THREADERS RP520-RR16 RP620-RR16 RP720-RR24 RP820-RR24

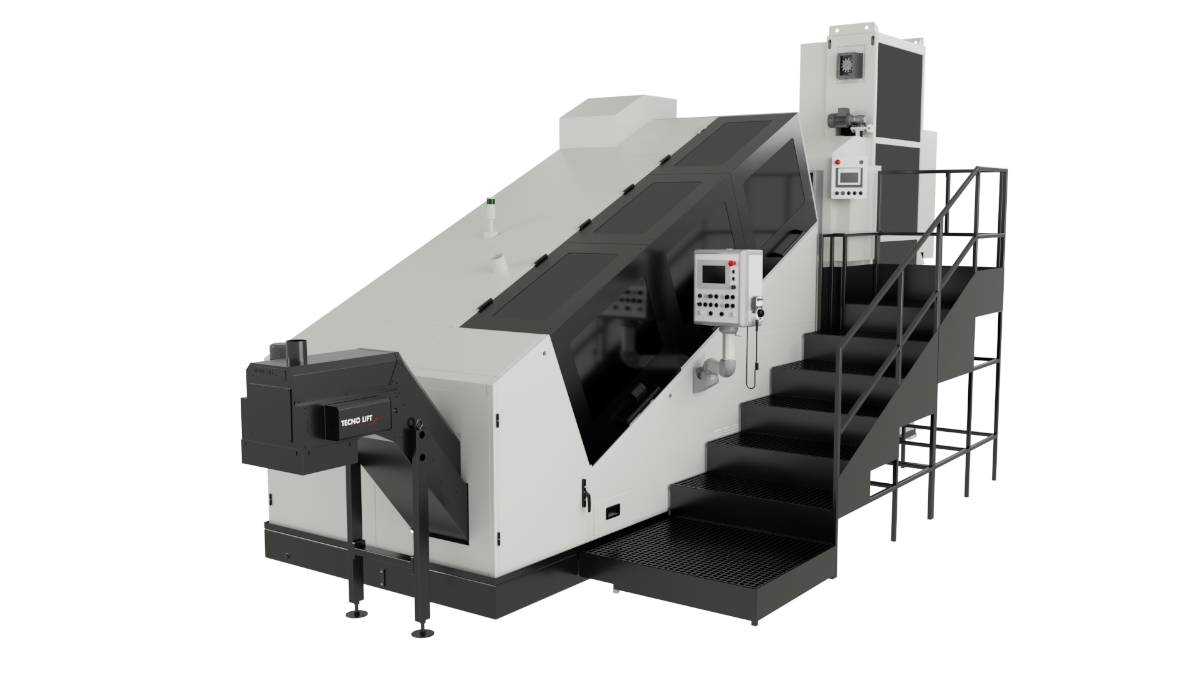

RP620-RR16

Progressive Header / COMBINED THREADERS
COMBINED THREADERS
Характеристики
RP520-RR16 RP620-RR16 RP720-RR24 RP820-RR24
M-Motorized M M M M
Starter unit double double double double
PETTINI PIANI
FLAT DIES TR5 TR6 TR7 TR8
Fixed die length mm 190 230 280 381
Moving die length mm 210 255 305 405
Die thickness mm 50 50 50 57
Die height mm 152,5 152,5 162,5 205
US DIES W30 W40 W50 W60
Fixed die length mm 190,5 228,6 279,4 381
Moving die length mm 215,9 254 304,8 406,4
Die thickness mm 42,86 42,86 49,2 55,55
Die height mm 152,5 152,5 162,5 205
BLANK
Thread diameter mm M8 - M14 M10 - M16 M14 - M20 M18 - M27
Shank length mm 250 250 300 330
Thread length mm 150 150 160 200
ROLLER SECTOR DIES
Roller ID mm 127 127 152,4 152,4
Sector ED mm 340 340 380 380
Sector ° 120 120 90 90
Die height mm 100 100 100 100
Passaggio vite da filo superiore utensili mm 150 150 220 220
Thread diameter, Rotative station mm M6 - M14 M6 - M14 M12 - M24 M12 - M24
MACHINE
Speed Range up to (rpm)° No 180 160 120 100
Motor power, Flat dies station KW 22 30 45 55
Motor power, Rotative station KW 18,5 18,5 29 29
Net Mass Kg 13.000 13.500 18.500 23.500
