Double Starter Unit Threader

Descrizione breve Double Starter Unit Threader Technologies

Descrizione Double Starter Unit Threader

Micro Threaders Single starter unit threader Double Starter Unit Threader Maxi Threader COMBINED THREADERS Warm Threader Pointing Machines

Double Starter Unit Threader RP520 RP520-R1 RP620 RP620-R1 RP720 RP720-R1 RP820 RP820-R1

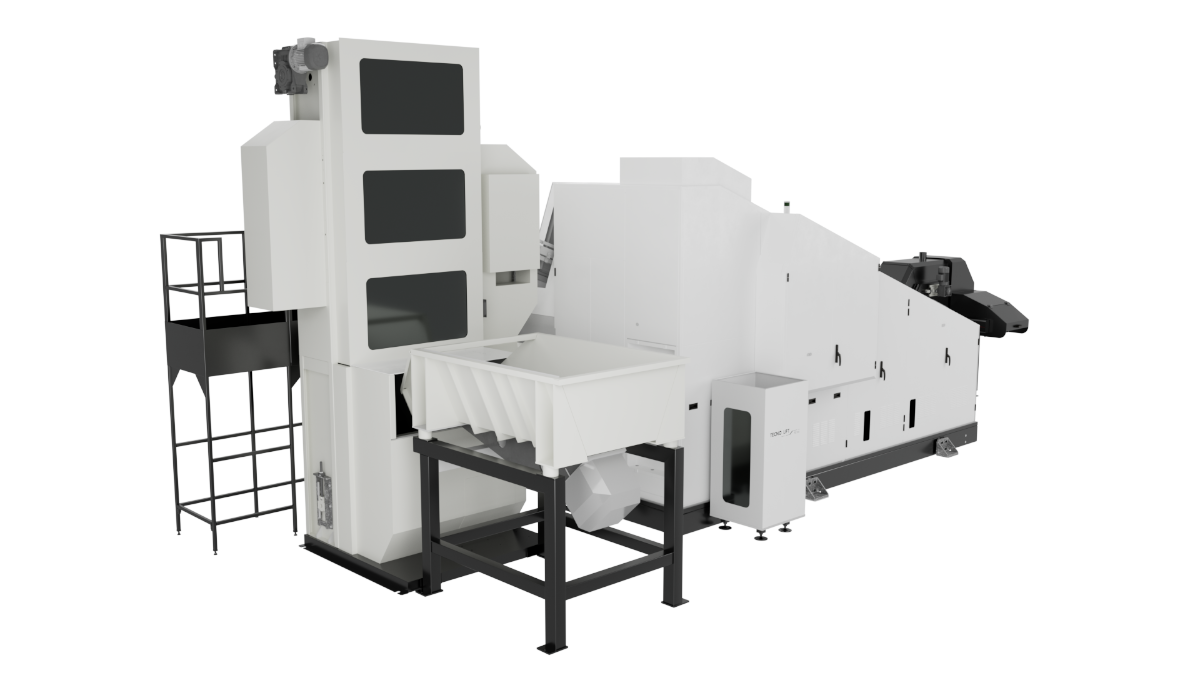

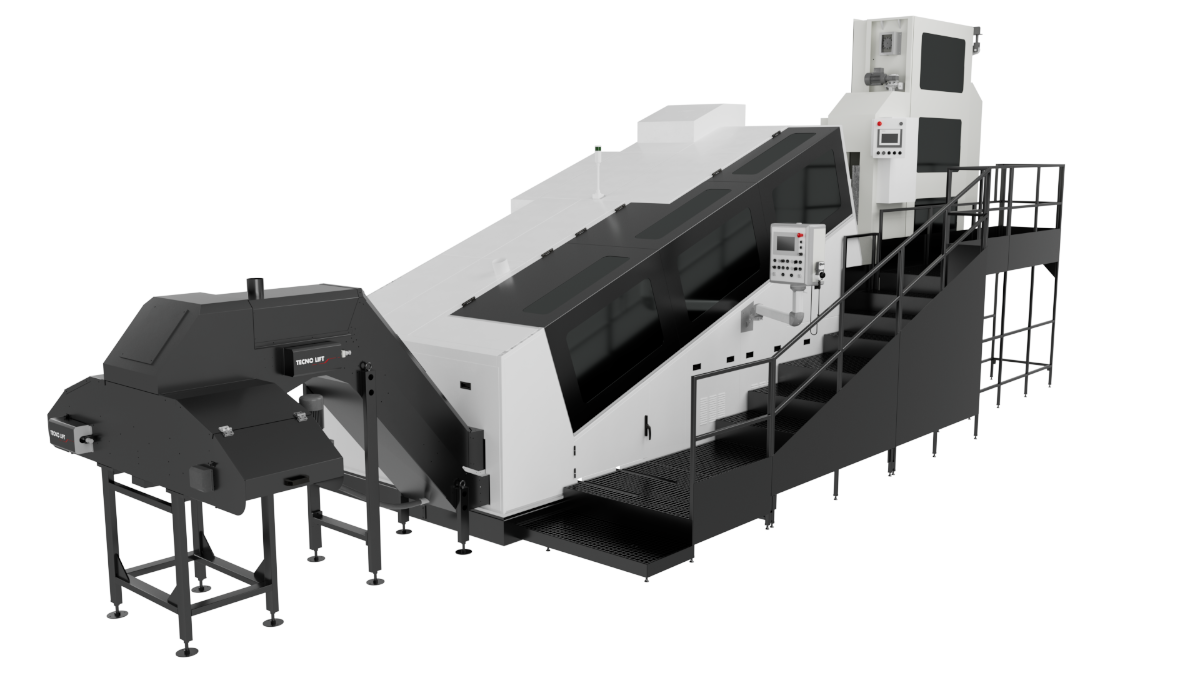

RP720-R1

Progressive Header / Double Starter Unit Threader

Double Starter Unit Threader Характеристики		RP520	RP520-R1	RP620	RP620-R1	RP720	RP720-R1	RP820	RP820-R1
M-Motorized		M	M	M	M	M	M	M	M
Starter Unit		Double	Double	Double	Double	Double	Double	Double	Double
EU DIES		TR5	TR5	TR6	TR6	TR7	TR7	TR8	TR8
Fixed die length	mm	190	190	230	230	280	280	381	381
Moving die length	mm	210	210	255	255	305	305	405	405
Die thickness	mm	50	50	50	50	50	50	57	57
Die height	mm	152,5	152,5	152,5	152,5	162,5	162,5	205	205
US DIES		W30	W30	W40	W40	W50	W50	W60	W60
Fixed die length	mm	190,5	190,5	228,6	228,6	279,4	279,4	381	381
Moving die length	mm	215,9	215,9	254	254	304,8	304,8	406,4	406,4
Die thickness	mm	42,86	42,86	42,86	42,86	49,2	49,2	55,55	55,55
Die height	mm	152,5	152,5	152,5	152,5	162,5	162,5	205	205
BLANK
Thread diameter	mm	M8 - M14	M8 - M14	M10 - M16	M10 - M16	M14 - M20	M14 - M20	M18 - M27	M18 - M27
Shank length	mm	250	250	250	250	300	200*	330	330
Thread length	mm	150	150	150	150	160	160	200	200
MACHINE
Speed Range up to (rpm)°	No.	180	150/180**	160	120/160**	120	100/120**	100	100
Motor power	KW	22	22	30	30	45	45	55	55
Net Mass	Kg	10.000	12.000	10.500	12.500	15.000	17.300	20.000	22.300
